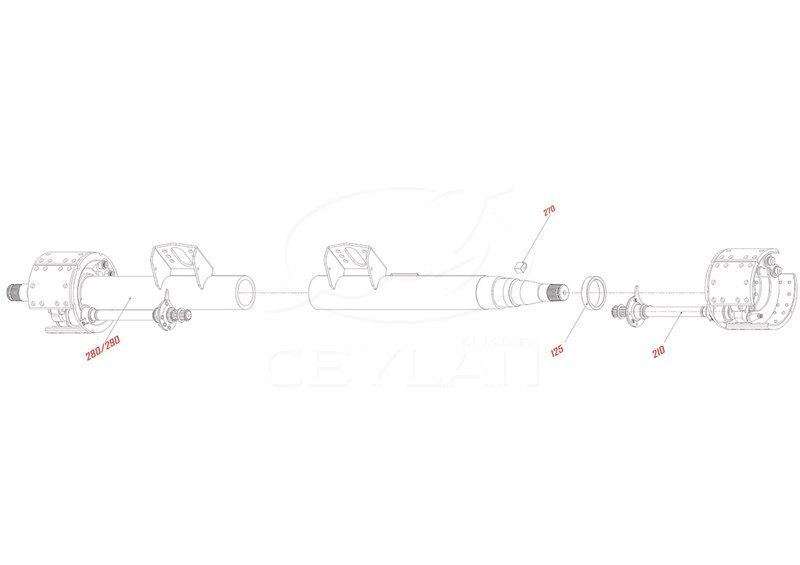

MCS 3020 Axles Main Body
Technical Details
Position number |
Part code |
Part name |
Description |
Quantity |
|---|---|---|---|---|
| 125 | 10.10.125.11100 | SEAL FLANGE |
9-12 TON - MCS 3020 | 2 PCS |
| 210 | 10.10.210.11111 | BRAKE ASSEMBLY |
MCS 3020 - 600 - RIGHT SIDE |
2 PCS |
| 10.10.210.11211 | MCS 3020 - 600 - LEFT SIDE |
|||
| 270 | 10.10.270.40100 | SENSOR BUSH |
- | 2 PCS |
| 280 | 12.14.280.503511 | AXLE MAIN BODY |
9 TON - 10 ST. - S.T - MCS 3020 - 600 |
1 PCS |
| 14.14.280.603511 | 12 TON - 10 ST. - S.T - MCS 3020 - 600 |
|||
| 12.14.280.503513 | 9 TON - 10 ST. - S.T - MCS 3020 - 650 |
|||
| 14.14.280.603513 | 12 TON - 10 ST. - S.T - MCS 3020 - 650 |
|||
| 290 | 12.14.290.503511 | AXLE MAIN BODY - WITH SENSOR BUSH |
9 TON - 10 ST. - S.T - MCS 3020 - 600 |
1 PCS |
| 14.14.290.603511 | 12 TON - 10 ST. - S.T - MCS 3020 - 600 |
|||
| 12.14.280.503513 | 9 TON - 10 ST. - S.T - MCS 3020 - 650 |
|||
| 14.14.280.603513 | 12 TON - 10 ST. - S.T - MCS 3020 - 650 |
Abbreviations S.T. = Single Tyre, D.T. = Double Tyre, ST. = Stud
