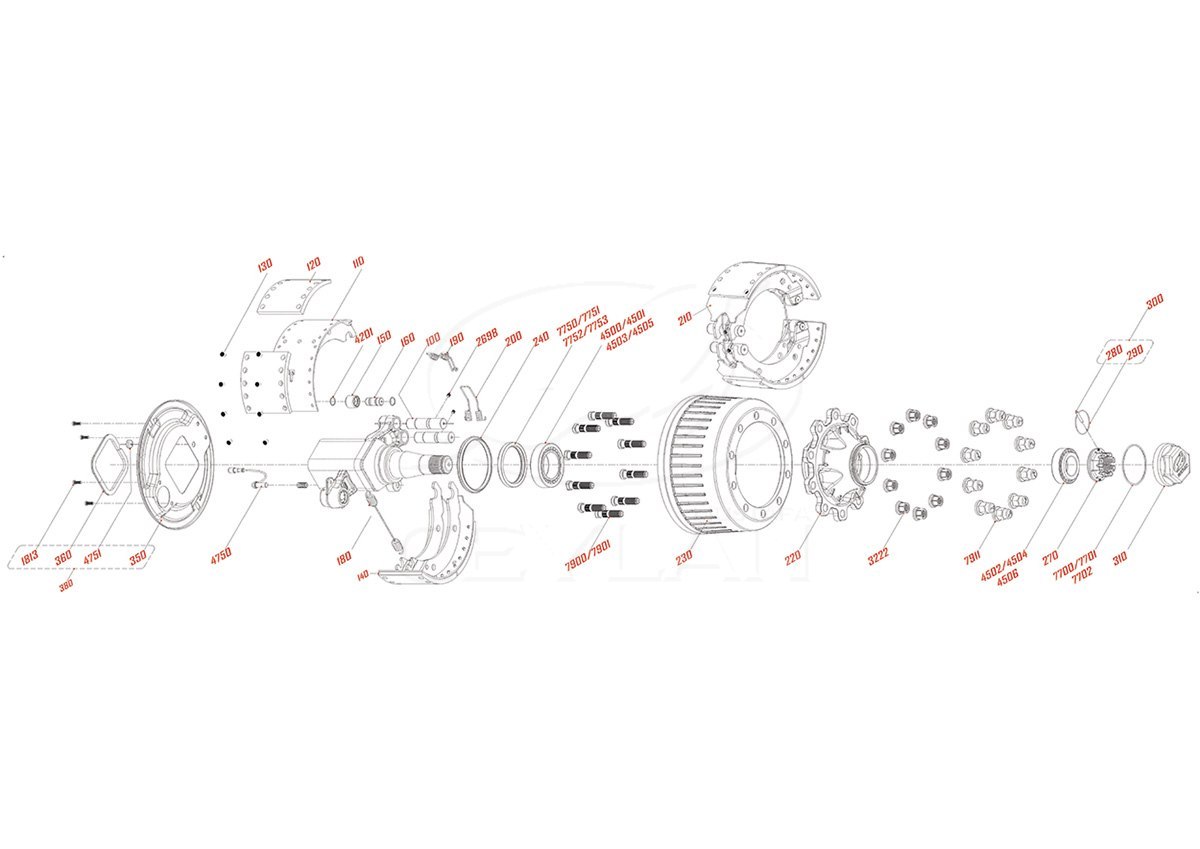

MCS 4218-4220-4222 10 Studs Brake System
Technical Details
Position number |
Part code |
Part name |
Description |
Quantity |
|---|---|---|---|---|
| 100 | 10.20.100.11000 | BROKE SHOE PIN | 9 TON | 4 PCS |
| 10.20.100.12000 | 12-14-16 TON | |||
| 2698 | 90.10.2698.00 | GRUP |
DIN 916 - M10 x 12 - 8.8 | 4 PCS |
| 110 | 10.20.110.30000.A | BRAKE SHOE WITHOUT LINING |
MCS 4218 | 4 PCS |
| 10.20.110.40000.A | MCS 4220 | |||
| 10.20.110.50000.A | MCS 4222 | |||
| 120 | 10.20.120.30000.A | BRAKE LINING | MCS 4218 | 8 PCS |
| 10.20.120.40000.A | MCS 4220 | |||
| 10.20.120.50000.A | MCS 4222 | |||
| 130 | 10.20.130.11110 | RIVET | - | 80 PCS |
| 140 | 10.23.140.00000.A | BRAKE SHOE WITH LINING |
MCS 4218 | 4 PCS |
| 10.24.140.00000.A | MCS 4220 | |||
| 10.25.140.00000.A | MCS 4222 | |||
| 150 | 10.20.150.11110 | BRAKE ROLLER |
Ø42 x Ø26 x 33 | 4 PCS |
| 160 | 10.20.160.11110 | ROLLER PIN |
Ø25,95 x 60,5 | 4 PCS |
| 4201 | 90.14.4201.00 | CLIP |
DIN 471 - Ø25 x 3,5 | 8 PCS |
| 180 | 10.20.180.10000 | RETURN SPRING |
- | 2 PCS |
| 190 | 10.20.190.10000 | LOCKING SPRING UPPER |
- | 2 PCS |
| 200 | 10.20.200.10000 | LOCKING SPRING BOTTOM | - | 2 PCS |
| 220 | 10.20.220.24520 | HUB |
9 TON 10 ST. - MCS 4218-4220-4222 |
2 PCS |
| 10.20.220.44520 | 12 TON 10 ST. - MCS 4218-4220-4222 |
|||
| 10.20.220.54520 | 14 TON 10 ST. - MCS 4218-4220-4222 |
|||
| 10.20.220.64510 | 16 TON 10 ST. - MCS 4218-4220-4222 - WITH ABS GEAR |
|||
| 10.20.220.64520 | 16 TON 10 BJ. - MCS 4218-4220-4222 - WITHOUD ABS GEAR |
|||
| 230 | 10.20.230.32000.A | MCS 4218 - 10 STUD |
2 PCS | |
| 10.20.230.42000.A | MCS 4220 - 10 STUD |
|||
| 10.20.230.52000.A | MCS 4222 - 10 STUD |
|||
| 7900 - 7901 | 90.26.7900.00 | S.T STUD |
M22 x 1,5 x 90 - 10.9 PHOSPHATE COATED |
20 PCS |
| 90.26.7900.01 | M22 x 1,5 x 90 - 10.9 DACROMED COATED |
|||
| 90.26.7901.00 | D.T STUD |
M22 x 1,5 x 110 - 10.9 PHOSPHATE COATED |
||
| 90.26.7901.01 | M22 x 1,5 x 110 - 10.9 DACROMED COATED |
|||
| 4500 - 4501 - 4503 - 4505 | 90.16.4500.00.A | INNER BEARING |
218248 - 210 | 2 PCS |
| 90.16.4501.00.A | 33118 | |||
| 90.16.4503.00.A | 32219 | |||
| 90.16.4505.00.A | 32222 | |||
| 7750 - 7751 - 7752 - 7753 | 90.24.7750.00.A | OIL SEAL |
Ø110 x Ø160 x 13 | 2 PCS |
| 90.24.7751.00.A | Ø125 x Ø152,4 x 15 | |||
| 90.24.7752.00.A | Ø125 x Ø175 x 13 | |||
| 90.24.7753.00.A | Ø180 x Ø215 x 15 | |||
| 240 | 10.20.240.30000 | ABS GEAR |
MCS 4218 | 2 PCS |
| 10.20.240.40000 | MCS 4220 | |||
| 10.20.240.50000 | MCS 4222 | |||
| 4502 - 4504 - 4506 | 90.16.4502.00.A | OUTER BEAING | 33213 | 2 PCS |
| 90.16.4504.00.A | 33215 | |||
| 90.16.4506.00.A | 32314 | |||
| 270 | 10.20.270.11000 | AXLE NUT | STANDARD TYPE | 2 PCS |
| 280 | 10.20.280.10000 | SECURITY RING | STANDARD TYPE | 2 PCS |
| 290 | 10.20.290.10000 | SECURUTY RING |
STANDARD TYPE | 2 PCS |
| 7700 - 7701 - 7702 | 90.24.7700.00.A | O-RİNG | Ø4 x 130 | 2 PCS |
| 90.24.7701.00.A | Ø4 x 140 | |||
| 90.24.7702.00.A | Ø5 x 150 | |||
| 310 | 10.20.310.12200 | HUB CAP |
9-12 TON ELECTROSTATİC PAINTED |
2 PCS |
| 10.20.310.21200 | 14 TON ELECTROSTATİC PAINTED |
|||
| 10.20.310.31200 | 16 TON ELECTROSTATIC PAINTED |
|||
| 3222 | 90.11.3222.01 | STUD NUT |
M22 x 1,5 PHOSPAHATE COATED |
20 PCS |
| 90.11.3222.11 | M22 x 1,5 DACROMED COATED |
|||
| 7911 | 90.26.7911.00 | STUD NUT CAP | - | 20 PCS |
| 4750 | 90.17.4750.00 | SENSOR CABLE |
WABCO | 2 PCS |
| 4751 | 90.17.4751.00 | SENSOR COVER |
- | 2 PCS |
| 350 | 10.20.350.41000 | DUST COVER | MCS 4218-4220-4222 - 120 x 120 | 2 PCS |
| 10.20.350.42000 | MCS 4218-4220-4222 - 140 x 140 | |||
| 360 | 10.20.360.12000 | COVER RUBBER |
120 x 120 - DOUBLE PIECE | 2 PCS |
| 10.20.360.22000 | 140 x 140 - DOUBLE PIECE | |||
| 370 | 10.20.370.10000 | RUBBER CAP |
- | 4 PCS |
| 1813 | 90.10.1813.00 | HEXAGON HEAD FLANGE BOLT |
DIN 6921 - M10 x 16 - 8.8 | 8 PCS |
Abbreviations S.T. = Single Tyre, D.T. = Double Tyre, ST. = Stud
