9 Ton 10 Studs Double Tyre Jumbo Axles
Axle Load:
9 ton
Stud Number:
10
Rim Size:
17.5 ", 19.5 "
Tyre Number:
II
Axle Beam:
Ø 127 mm
9 ton / Double tyre
17.5"-19.5" rims
Drum brake
10 studs / Ø 300x180 mm
Axle beam: Ø 127

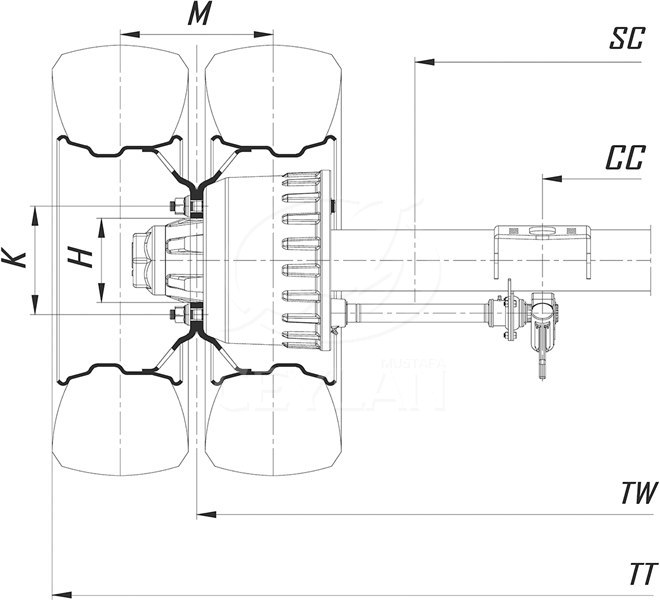

Technical Details
Axle type |
Carrying capacity (kg) |
Brake type |
Number of tyre |
Track width (mm) TW |
Spring center (mm) SC |
Air cylinder centre (mm) CC |
Axle cross section (mm) |
Wheel connection |
Tyre / Rim size |
Tyre example |
Overall width (mm) TT |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Wheel stud |
Ø H / K (mm) |
ET (Offset) (mm) / M (Tyre cent.) (mm) |
|||||||||||
| 0910.3020.D16.DT.NR.NR | 9.000 | MCS 3020 | II | 1.820 | 900 | 410 | 127 x 16 | 10 x M22 x 1,5 | 175 / 225 | M 304 | 17,5'' / 19,5'' | 265/70 R19,5 | 2.410 |
| 9.000 | MCS 3020 | II | 1.820 | 940 | 410 | 127 x 16 | 10 x M22 x 1,5 | 175 / 225 | M 304 | 17,5'' / 19,5'' | 265/70 R19,5 | 2.410 | |
| 9.000 | MCS 3020 | II | 1.820 | 980 | 410 | 127 x 16 | 10 x M22 x 1,5 | 175 / 225 | M 304 | 17,5'' / 19,5'' | 265/70 R19,5 | 2.410 | |
| 9.000 | MCS 3020 | II | 1.860 | 900 | 450 | 127 x 16 | 10 x M22 x 1,5 | 175 / 225 | M 304 | 17,5'' / 19,5'' | 265/70 R19,5 | 2.450 | |
| 9.000 | MCS 3020 | II | 1.860 | 940 | 450 | 127 x 16 | 10 x M22 x 1,5 | 175 / 225 | M 304 | 17,5'' / 19,5'' | 265/70 R19,5 | 2.450 | |
| 9.000 | MCS 3020 | II | 1.860 | 980 | 450 | 127 x 16 | 10 x M22 x 1,5 | 175 / 225 | M 304 | 17,5'' / 19,5'' | 265/70 R19,5 | 2.450 | |
| 9.000 | MCS 3020 | II | 1.880 | 980 | 470 | 127 x 16 | 10 x M22 x 1,5 | 175 / 225 | M 304 | 17,5'' / 19,5'' | 265/70 R19,5 | 2.470 | |
